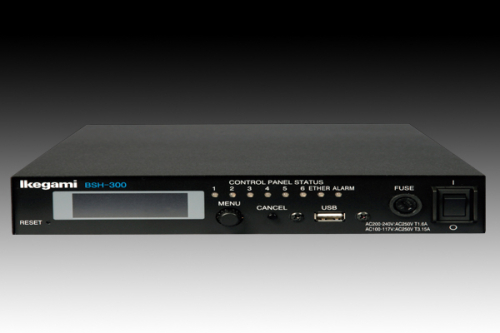

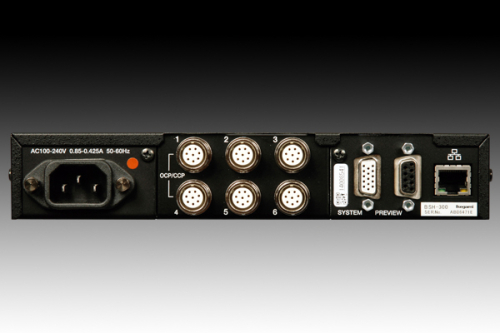

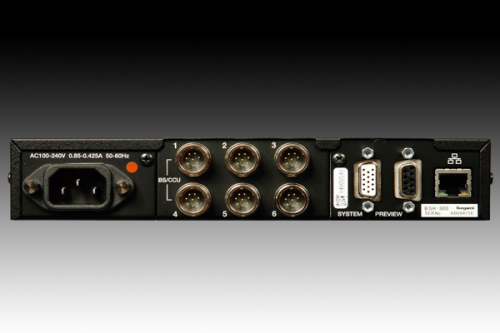

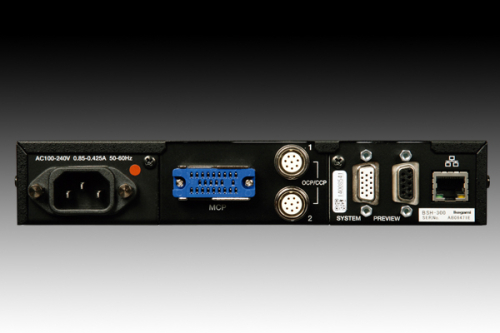

BSH-300
Ethernet/ICCP Command Converter
Three different control architectures are supported by the OCP-300 Operation Control Panel and BSH-300 Ethernet/ICCP Command Converter, each with a wide range of camera control capability.
The BSH-300 is used for converting command between Ethernet and ICCP, allowing Ikegami's conventional control panels such as the OCP-100 etc. into the Ethernet Network System.
| Ratings | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power Requirement | 100 to 240 V AC | ||||||||||||||||||||
| Power Consumption | 150 VA | ||||||||||||||||||||
| Operating Temperature | 0 to 45 °C | ||||||||||||||||||||
| Storage Temperature | -25 to 60°C | ||||||||||||||||||||
| Operating Humidity | 30 to 90% *Non-condensation | ||||||||||||||||||||
| Dimensions | W 217.5 x H 38.6 x D 400 mm | ||||||||||||||||||||
| Weight (Excluding Stand) | Approx. 2.6 kg | ||||||||||||||||||||
|
|||||||||||||||||||||
