HDK-79EC2

HD Native Multi-format CMOS Camera System

Discontinued Product

・Full Digital and High Picture Quality
・Using newly developed digital process ICs, precision designed at 0.18µm rule, the video signals are digitized with A/D conversion and up to 38-bit internal digital processing circuit. As non-linear processing such as gamma correction is performed digitally, consistent and repetitive high picture quality and stable reliability is assured.
・HDK-79EC2 type:Sensitivity F10(1080i/59.94 mode), F11(1080/50 mode)/2000lx(Typical)

FINE DTL function

By expanding the small edge in the low constrast object and compressing the edge component in the high contrast object, the impression for the glare of picture with too much edge is reduced and the natural image, which is more visual for human being, can be obtained.

Six-Vector Color Corrector + Two-Axis Custom Color

Includes a color correction function that enables hue and saturation to be adjusted for each of the six primary colors (R, G, B, Cy, Y, Mg), plus another function to make color correction of two user-selected colors of the subject. Color correction before Gamma Circuit provides more true color reproduction.

Enhanced Digital DTL

Improved visual reproduction of subjects such as texture and sheen, and richer reproduction of details in skin tone and in dark backgrounds is realized.

Super KNEE

The Super Color Knee system maintains color saturation without changing the hue of the highlighted parts and provides natural color reproduction under high luminance conditions.

KNEE DTL function

KNEE DETAIL function provides better expression in highlight scene, improving on previous Knee Aperture. Vertical and Horizontal contour corrections are independently made to the highlight video where the KNEE is processed. (Supported by OCP-200/MCP-150/MCP-200/RCP-50B)

Menu Preset function

All menu items including Level and Control settings can be preset and easily recalled from the control panel. It is also easy to reset to factory settings. Preset for 3 MATRICES can be set. The MATRIX settings can be preset for different lighting, and then selected by the control panel. (Supported by OCP-200/MCP-150/MCP-200/RCP-50B)

Master FLARE

A Master FLARE function enables one adjustment to control the overall level of FLARE while maintaining the tracking of the R/G/B channels. This feature makes it possible to control flare during operation since the color balance is never off. (Supported by OCP-200/MCP-150/MCP-200/RCP-50B)

Clear VF DTL function

This function makes a difference in the edging of the image exclusively in the viewfinder, to make the precise point of focus easier to find, and to make it easier for the cameraperson to focus.

Full digital processing Camera Control Unit, the full size CCU-970

The full size CCU-970 is designed for use of an optical fiber connection between the HDK-cameras, ensuring high-quality signal transmission and long cable runs, up to 3000m for Studio camera or Portable camera with System Expander. Both HDTV and SDTV formats are supported simultaneously in both digital and analog form with a wide range of built-in interfaces. The CCU- 890 also features embedded audio in the SDI output signals, as well as, frame synchronizer for return video input signals. Furthermore, the CCU-970 supports dual link with simple board exchange for high speed operation. (note: camera head must also support for dual link)

Space-Saving Design

Suitable for small-sized HD vans and rental / flight-pack systems A half-rack base station BS-89A/97 is available, permitting full SMPTE fiber cable extention with a compact base station. It supports multi-format HDTV as standard, SDTV format available with optional boards. The BS-89A/97 supports camera cable length up to 1000m for the Portable camera with System Expander.

State-of the-Art, expanding HDTV System accessories

Triax Adapter System An optional triax board set is available for the new CCU-970M, providing built-in support for either triax or fiber camera cable with simple front panel selection. The result is a highly flexible camera system which can be setup for either cable type in a matter of minutes.

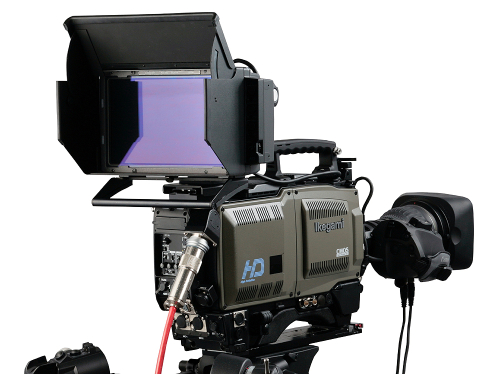

Studio lens and 9-inch LCD VF operation with SE-79D System Expander

»»VFL-912HD

HDK-79EC2/HS

High Speed Model, exploiting new CMOS technology, the HDK-79EC2/HS offers 1080/60p and 720/120p High Speed sensor readout for special applications, including Super Slow Motion, also available.
