EE-SM7105IP

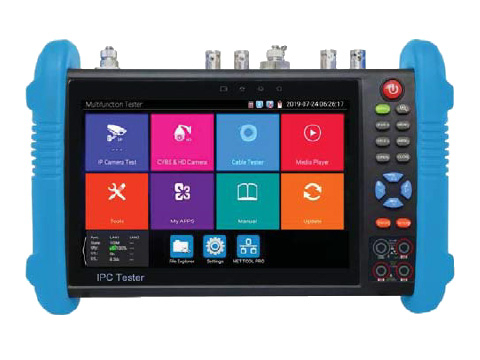

EE-SM7105IP Multi-functions CCTV Tester

7-inch 8MP TVI/CVI/AHD/IP 4K H.265 CCTV tester with digital multi-meter

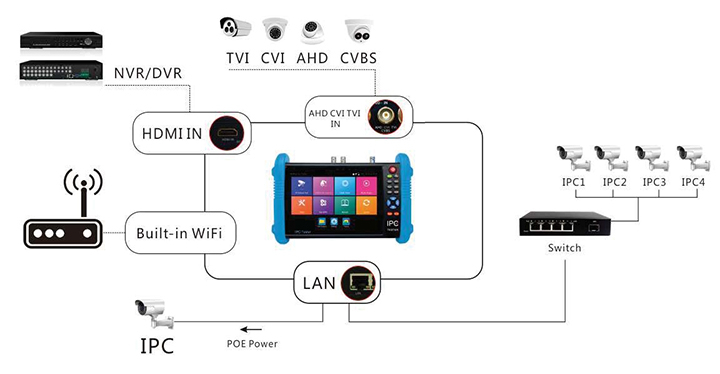

The 7-inch touch screen IP camera tester is designed for maintenance and installation of IP analog, HD coaxial cameras as well as other security equipment. The 1920x1200 resolution enables it to display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. Additional, it with other functions RJ45 TDR cable test, UTP cable test and cable scan etc. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity.

  • CCTV system installation and maintenance
  • Network cabling project installation and maintenance
  • Dome camera, IP TVI CVI AHD 4K H.265 camera testing
  • Video transmission channel testing
  • PTZ controller

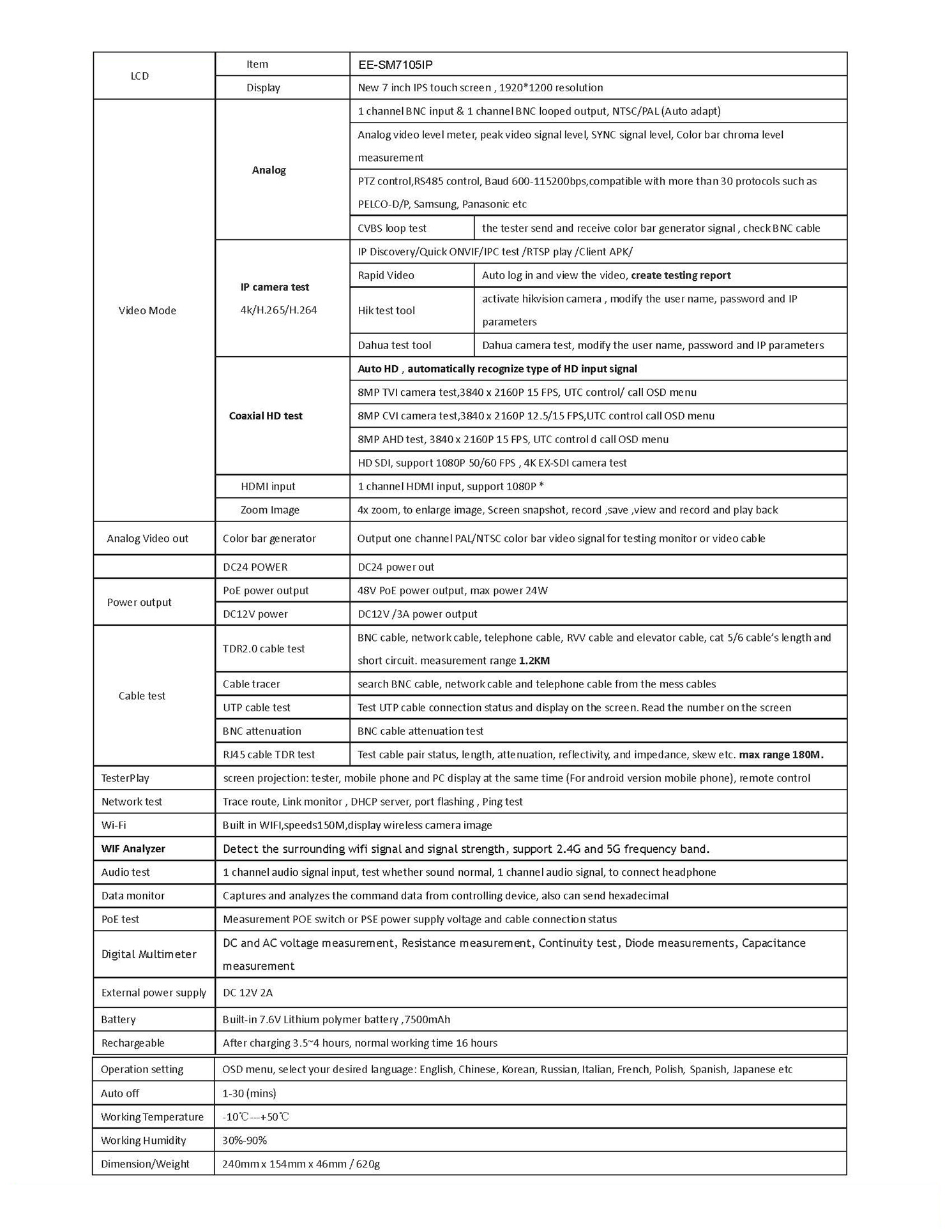

Camera test:

  • 7 inch IPS touch screen, 1920*1200 resolutions
  • H.265 & H .264 IP, 4K video display via mainstream
  • 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
  • 8MP AHD test, 3840 x 2160P P15fps, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *
  • 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
  • HD SDI (1080P) ,3G SDI and 4K EX-SDI camera test
  • Rapid ONVIF, Auto log in and display image, create testing report
  • HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display, record and snapshot *
  • HDMI output, Support 720P@25/30/50/60 Fps, 1080P@25/30Fps various formats video signal
  • AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
  • Analog camera test and PTZ control
  • IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
  • DC12V/3A power output, camera can be powered from DC 12 Voltage
  • 48V PoE power output power/ DC 24V 2A Power output
  • Professional Wi-Fi Analyzer, check Wi-Fi signal ??????????????????
  • Dual 1Gbps LAN ports, it can check network bandwidth, packet loss or error data
  • Rapid video, just by one key to detect all network cameras and auto display
  • Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
  • CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
  • Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cabletest:

  • Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need
  • customized
  • RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc (max 180m)

Other functions :

  • POE Test
    PD Test The tester receives the power(POE 802.3at), power supply voltage detection PSE Test The tester supplies the power(POE 802.3at) 25.5W, PD actual power detection
  • Tester Play: Tester, android version mobile phone and PC display at the same time
  • Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
  • Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters
  • Self -update software, you can install apps with android version
  • Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route
  • Quick office, quick office app (support excel, word, ppt format) doc. editable
  • 8GB SD card including
  • Display its genuine resolution of the IP camera images
  • Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
  • 7.6V/7500mAh Li- battery,4 hours fast charging working ,lasts for 16 hours
