3G-SDI

3-Gbps(3G)-SDI, higher resolution(FHD) of picture quality required Serial Digital Interface(SDI) for 1080p/60hz.

SDI<->HDMI Converter

The HDMI output connector can actively transmit in HDMI input signal or output in HDMI signal that has been converted from an SDI signal. In short, signal transmits from SDI input to HDMI output & from HDMI input to SDI output.

Vector Scope

Display an X-Y plot of input signal about the relationship between two signals

No Splitter

HDMI video out with no annoying spliters - it includes an HDMI ouput feature which allows customers to duplicae the video content onto a second monitor no annoying HDMI splitters. The second monitor can be any size & picture anality will not be affected.

Waveform

Display the Luma(Y) and Chroma(Cb/Cr) of the input video signal as a form of waves

H/V Delay

Viewing of the blanking area and sync/burst signal by displaying the horizontal and vertical intervals in the center of the screen

IPS Panel

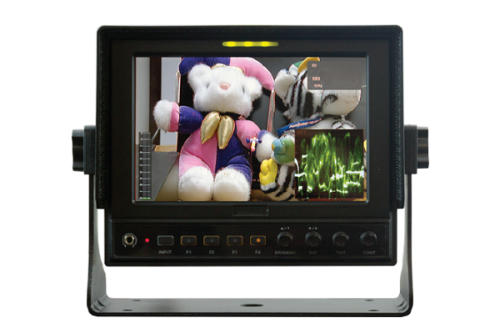

VF700WA has a 1280×800 resolution and use 7-inch IPS panel with wide viewing angles 178⁰×178⁰

Marker

4:3, 14:9, 15:9 and 16:9 area line marker display

• SDI Embedded 2CH Audio Level Meter
• SDI & HDMI Cross Conversion
• Wave / Vectpr Scope | Image Flip & Zoom | Histogram
• Front User-Definable Buttons(F1 to F4)
• Screen Color Mode: Blue, Red, Green & Mono
• H/V Delay, Peaking, Exposure, False Color(SD/HD SDI)
• Tally(Red, Green) Support | Metal Case | Hood
