ULE-185U Rev.G

18.5-inch HDTV Full HD professional monitor

Discontinued Product

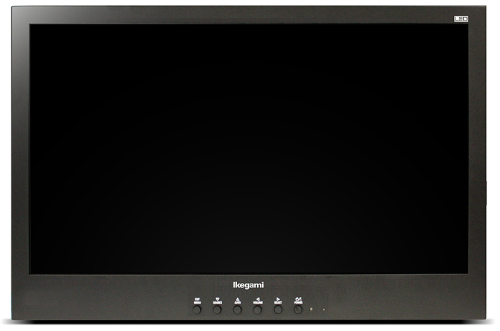

The ULE-185U is a professional multi-purpose Full HD monitor with 3G/HD-SDI and HDMI interface. ULE-185U is ideal for PC applications, or HD video monitoring. With a VESA interface it can be easily racked, wall-mounted or used as a desktop.

  • Full HD 3G Multi-format LED Monitor
  • LED backlight to extend the lifetime and save power
  • Non-glare surface coating
  • SD/HD/3G-SDI(level A) is supported
  • PC(VGA) and HDMI inputs
  • Wireless remote control
  • PIP/PBP multi display function
Display
Screen Size 18.5-inch
Resolution 1366×768
Pixel Pitch 0.300×0.300 mm
Brightness 250cd/m2(typical)
Contrast Ratio 1000:1
Aspect Ratio 16:9
Viewing Angle(H/V) 170°(H/V)
Display Color 16.7 million
Response Time 14msec.
Video System NTSC/PAL
Panel Life Time(hours) 30,000 hours
Input Connector
1×BNC SDI(SD/HD/3G)
3×BNC COMPONENT Input
1×HDMI HDMI Input
1×DVI DVI Input
1×VGA VGA Input
1×Phone Jack Analog Stereo Audio Input
1×RJ45 Jack RS422 Monitor Control
1×HDMI PGM Download Port
Interface
Video In/Out(BNC Type) 2/2
VGA In(15Pin D-Sub) 1
HDMI In 1
SDI In/Out 1/1
Audio In(RCA Type) 2
PC Stereo In 1
Special Features
Built in Speakers Yes(1W×2)
Remote Control Yes
Filter Type 3D Comb filter
Deinterlacing Yes
Trigger Source Switching Yes
Noise reduction Yes
Auto source sequencing Yes
Multilingual Language Eng, Spa, Fre, Ger, Ita
Dimensions
Outline Dimension(with Stand) 17.64”×11.72”×3.58”
Cabinet
Cabinet Material Electro-Galvanized Steel
Power
Electrical Ratings DC 12V
Circumstance
OperatingTemperature 0~50℃
OperatingTemperature -20~60℃
Mounts
VESA Mount Size 100×100mm
Ceiling Mount CMK-01
Wall Mount WB-5, 10, 30, 31
RackMount RMK-08
