ULE-185U Rev.F
18.5-inch HDTV Full HD professional monitor
Discontinued Product

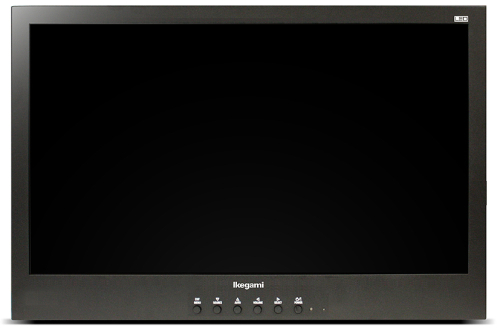

The ULE-185U is a professional multi-purpose Full HD monitor with 3G/HD-SDI and HDMI interface. ULE-185U is ideal for PC applications, or HD video monitoring. With a VESA interface it can be easily racked, wall-mounted or used as a desktop.
- Full HD 3G Multi-format LED Monitor
- LED backlight to extend the lifetime and save power
- Non-glare surface coating
- SD/HD/3G-SDI(level A) is supported
- PC(VGA) and HDMI inputs
- Wireless remote control
- PIP/PBP multi display function
| Display | ||
| Screen Size | 18.5-inch | |
| Resolution | 1366×768 | |
| Pixel Pitch | 0.300×0.300 mm | |
| Brightness | 250cd/m2(typical) | |
| Contrast Ratio | 1000:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle(H/V) | 170°(H/V) | |
| Display Color | 16.7 million | |
| Response Time | 14msec. | |
| Video System | NTSC/PAL | |
| Panel Life Time(hours) | 30,000 hours | |
| Interface | ||
| Video In/Out(BNC Type) | 2/2 | |
| VGA In(15Pin D-Sub) | 1 | |
| HDMI In | 1 | |
| SDI In/Out | 1/1 | |
| Audio In(RCA Type) | 2 | |
| PC Stereo In | 1 | |
| Special Features | ||
| Built in Speakers | Yes(1W×2) | |
| Remote Control | Yes | |
| Filter Type | 3D Comb filter | |
| Deinterlacing | Yes | |
| Trigger Source Switching | Yes | |
| Noise reduction | Yes | |
| Auto source sequencing | Yes | |
| Multilingual Language | Eng, Spa, Fre, Ger, Ita | |
| Dimensions | ||
| Outline Dimension(with Stand) | 17.64”×11.72”×3.58” | |
| Cabinet | ||
| Cabinet Material | Electro-Galvanized Steel | |
| Power | ||
| Electrical Ratings | DC 12V | |
| Circumstance | ||
| OperatingTemperature | 0~50℃ | |
| OperatingTemperature | -20~60℃ | |
| Mounts | ||
| VESA Mount Size | 100×100mm | |
| Ceiling Mount | CMK-01 | |
| Wall Mount | WB-5, 10, 30, 31 | |
| RackMount | RMK-08 | |
