ULE-185U
18.5-inch HDTV Full HD professional monitor
Discontinued Product
The ULE-185U is a professional multi-purpose Full HD monitor with 3G/HD-SDI and HDMI interface. ULE-185U is ideal for PC applications, or HD video monitoring. With a VESA interface it can be easily racked, wall-mounted or used as a desktop.
- Full HD 3G Multi-format LED Monitor
- LED backlight to extend the lifetime and save power
- Non-glare surface coating
- SD / HD / 3G-SDI (level A) is supported

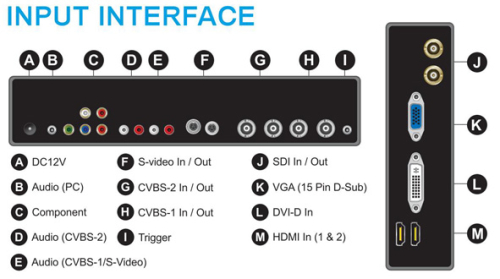

- PC (VGA), DVI-D, S-Video and HDMI inputs
- Wireless remote control
- PIP / PBP multi display function
| Display | ||
| Screen Size | 18.5-inch | |
| Resolution | 1366×768@60Hz | |
| Pixel Pitch | 0.300×0.300 mm | |
| Surface | Non-glare coating | |
| Brightness | 250cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Aspect Ratio | 16:9 | |
| Viewing Angle(H/V) | 170°(H/V) | |
| Display Color | 16.7 million | |
| Response Time | < 5msec.(Gray to Gray) | |
| Video System | NTSC/PAL | |
| Interface | ||
| SDI In/Out | 1 In / 1 Out SD-SDI: 480i (59.94)/575i(50) HD-SDI: 720P (50/59.94/60) 1080i(50/59.94/60) 1080P (24/25/29.97/30) 3G-SDI: 1080P(50/59.94/60) |
|
| Video In/Out(BNC Type) | 2 In/2 Out | |
| S-Video In/Out | 1 In/1 Out | |
| DVI-D In / HDMI In | 1 In/2 In | |
| VGA In (15Pin D-Sub) | 1 In | |
| Component | 1 In | |
| Audio In (RCA Type) | 3 Left & Right | |
| PC Stereo In | 1 In | |
| Transmitter | ||
| Remote Control | Yes | |
| Audio | ||
| Built-in Speakers | Yes (4W×2) | |
| Features | ||
| Multi Display Function | PIP/PBP | |
| Filter Type | 3D Comb Filter is built-in | |
| Deinterlacing | Yes | |
| Noise reduction | Yes | |
| Advanced Auto Power Recovery | Yes | |
| Trigger Sensor | Yes | |
| Auto Pixel Shift | Yes | |
| Auto Source Sequencing | Yes | |
| Multilingual Language | English, Spanish, French, German, Italian | |
| General | ||
| Outline Dimension | W17.64”×H11.72”×D3.58” | |
| Net Weight | 4.8kg(10.58lbs) | |
| Material/Color | Metal/Black | |
| Desk Top Stand | Kick Type | |
| Power | < 27W DC12V/3.33A AC100~240V(50/60Hz) |
|
| Operating Temperature | 0~40°C/32~104°F | |
| Optional Mounts | ||
| VESA Mount Size | 100×100mm | |
| Wall Mount | WB-5, 10, 30, 31 | |
| Ceiling | CMK-01 | |
| 19" Rack Mount Adapter | RS-185 | |
