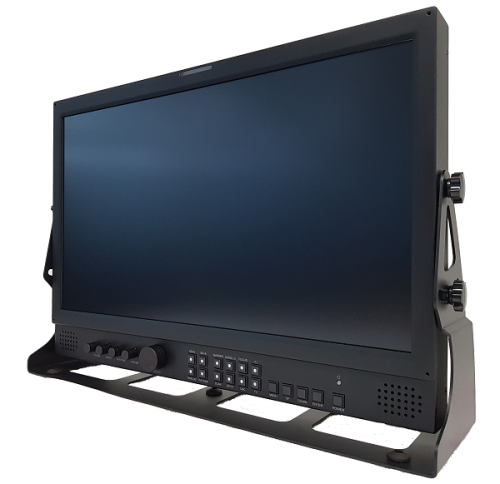

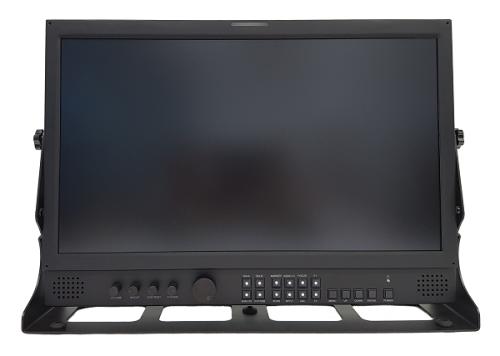

HMM-1850
18.5-inch 3G Multi-Format LCD Monitor
Discontinued Product
The HMM-1850 is a Multi-Format LCD Monitor. It employs High-resolution (1920 x 1080) LCD Panel with LED backlight. It comes with 3G-SDI, HDMI Input as standard. The HMM-1850 is an excellent and affordable solution for various broadcast monitoring applications.
- 18.5-inch 1920×1080 Resolution
- Matte finish LCD Surface
- LED Backlight
- Integrated WFM, Vector Scope and Test Pattern Generator
- Embedded Audio Level Meter
- Supports AC/DC Battery Operation
- Rack Mountable (Adaptor: RS-1850 Option)
Specifications
| Display | |||
| Screen Size | 18.5-inch | ||
| Resolution | 1920×1080 | ||
| Pixel Pitch | 0.100×0.300 mm | ||
| Brightness | 350cd/m2(typical) | ||
| Contrast Ratio | 1000:1 | ||
| Aspect Ratio | 16:9 | ||
| Viewing Angle(H/V) | 178°(H/V) | ||
| Display Color | 16.7 million(True 8bit) | ||

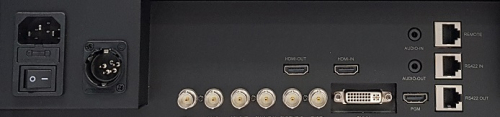

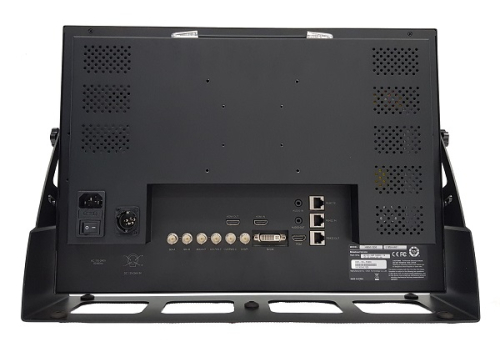

| Input Connector | |||
| 2×BNC | SDI(SD/HD/3G) 2Channel Input | ||
| 3×BNC | 3 CVBS, S-Video, Component Inputs | ||
| 1×HDMI | HDMI Input | ||
| 1×DVI | DVI Input | ||
| 1×Phone Jack | Analog Stereo Audio Input | ||
| 1×RJ45 Jack | Remote Control | ||
| 1×RJ45 Jack | RS422 Monitor Control | ||
| 1×HDMI | PGM Download Port | ||
| Output Connector | |||
| 1×BNC | SDI Select Channel Output | ||
| 1×HDMI | SDI to HDMI Converter Output | ||
| 1×Phone Jack | Analog Stereo Audio Output | ||
| 1×RJ45 Jack | RS422 Daisy Chain Output | ||
| 2×Speaker | 2×2W | ||
| Input Signal Format | |||
| SDI | SMPTE 425M- AB | YCbCr 4:2:2 10bit 1080P(60/59.94/50) |
|
| YCbCr, RGB 4:4:4 10bit,12bit 1080i(60/59.94/50) 1080P(30/29.97/25/24/23.98) 1080Psf(30/29.97/25/24/23.98) |
|||
| YCbCr, RGB 4:4:4 10bit 720P(60/59.94/50/30/29.97/25/24/23.98) |
|||
| SMPTE 274M | YCbCr 4:2:2 10bit 1080i(60/59.94/50) 1080P(30/29.97/25/24/23.98) 1080Psf(30/29.97/25/24/23.98) |
||
| SMPTE 260M | YCbCr 4:2:2 10bit 1035i(60/59.94) |
||
| SMPTE 296M | YCbCr 4:2:2 10bit 720P(60/59.94/50/30/29.97/25/24/23.98) |
||
| SMPTE 125M | YCbCr 4:2:2 10bit 525i(NTSC 59.94) |
||
| ITU-R BT.601 | YCbCr 4:2:2 10bit 625i(PAL 50) |
||
| 2K Format | YCbCr 4:2:2 10bit 2048×1080P(24/23.98/24sF/23.98sF) |
||
| ANALOG | COMPONENT | 1080P (60/59.94/50) 1080i (60/59.94/50) 1080P (30/29.97/25/24/23.98) 720P (60/59.94/50) |
|
| CVBS, S-Video | NTSC(525/59.94i) , PAL(625/50i) | ||
| HDMI | 480i/480P/576i/576P/1080i/1080P | ||
| DVI | VGA, SGA, XGA, SXGA, WXGA | ||
| General | |||
| Outline Dimension | W17.4”×H12.1”×D2.4”(W443mm×H308mm×D61mm) | ||
| Net Weight | 17.63lbs(8000g) | ||
| Power | DC12~ 24V / AC 110~240V (50~60Hz) | ||
| Power Consumption | 26W | ||
| Operating Temperature | 0~40℃(32~104F) | ||

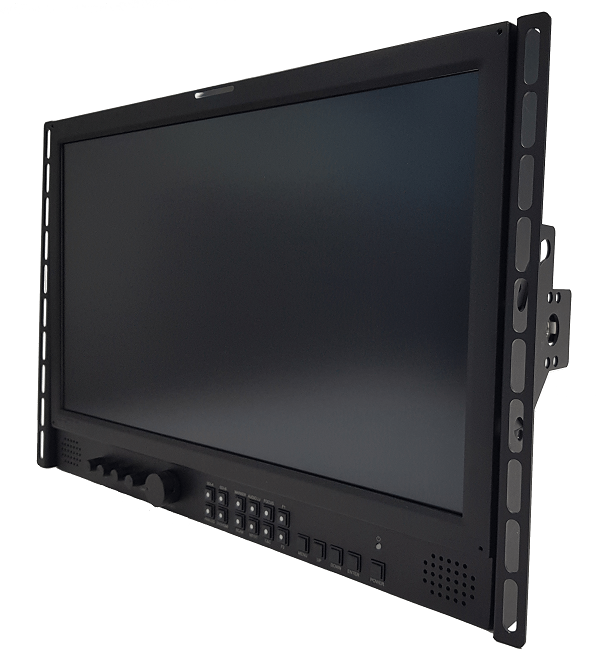

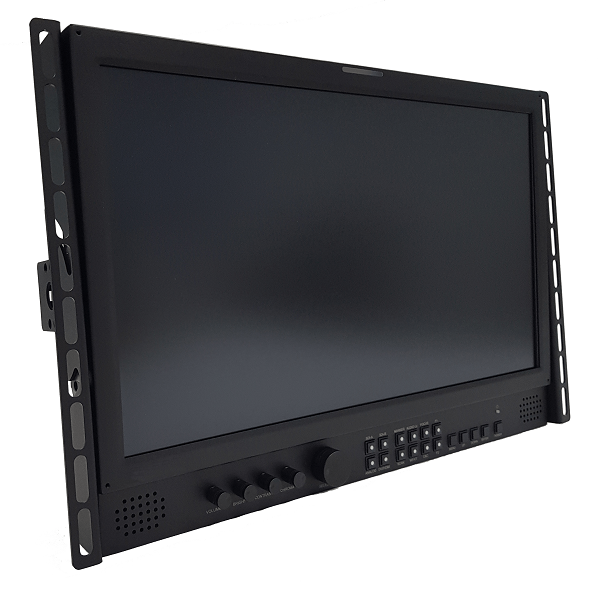

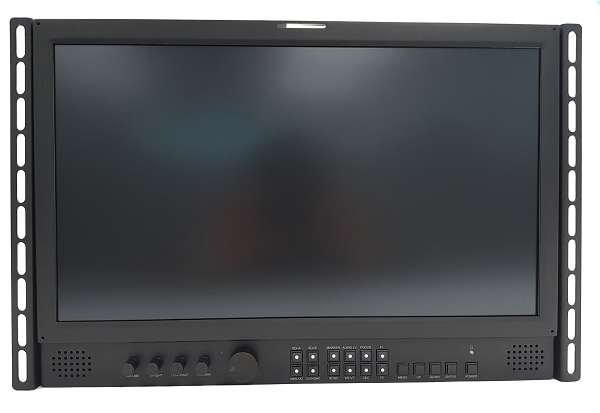

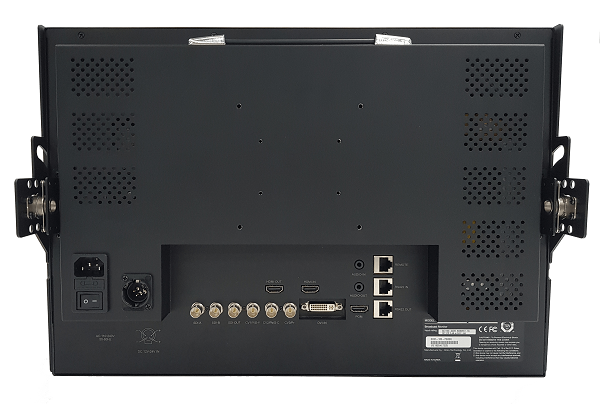

HMM-1850 Accessory(Rack Mout Type)

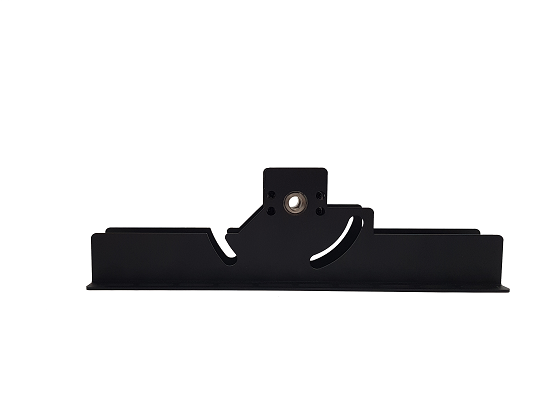

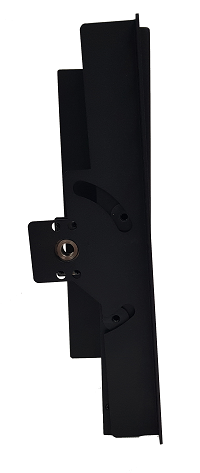

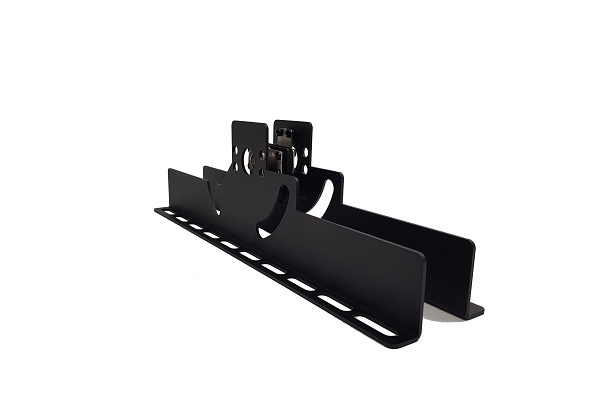

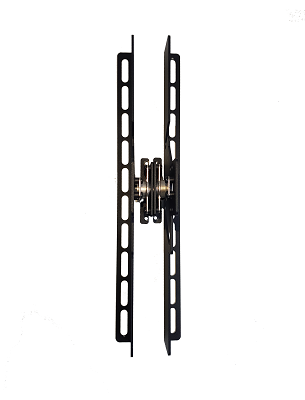

RACK MOUNT ADAPTOR(RS-1850)
