4K High Resolution

By equipping the CCU with 4K (3840x2160) digital processing, the MKC-750UHD produces superb resolution with four times the sample rate of conventional HD (1920x1080). (Horizontal Resolution 1600TVL, and S/N 58dB)

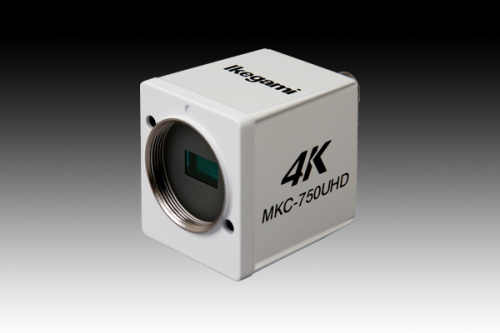

Compact and Lightweight Camera Head

Although the MKC-750UHD is a 4K camera, it has a very compact and lightweight camera head.

High Sensitivity

When providing 4K resolution, the MKC-750UHD has a sensitivity of F11 (LINE MIX ON) at 2000 lx.

Various Image Outputs

The CCU outputs digital HD signals (HD-SDI and DVI), as well as, a 4K signal.

Automatic Iris Control

By connecting an exclusive camera adaptor, the auto iris control function can be used. Optical Iris in this connection.

Automatic Electronic Shutter System(Shutter speed)

The continuously variable electronic shutter can be used with a manual iris lens. This Iris functionality maintains optimized performance over a wide range of lighting conditions.

Auto Gain Control

The gain can be adjusted automatically to provide the proper picture brightness when the light level is not enough.

Flip and Turn Function

The image s can be flipped horizontally and vertically by the digital processing to correct the TV image against the inversion caused by optical instruments. Remote control is available via an optional external unit such as a foot switch.

Antibacterial Coating

The camera head and CCU (camera control unit) are coated to improve infection control.

Picture Freeze

By pressing the Freeze button on the CCU, it is possible to hold the current image.

Scene File

Four switches are available on the CCU to custom assign to control functions important to the user.

Digital Zoom

Electronic zoom for the center of an image is available, up to four times.

Level Indicator

Video level can be checked and adjusted using a level indicator on the CCU.
