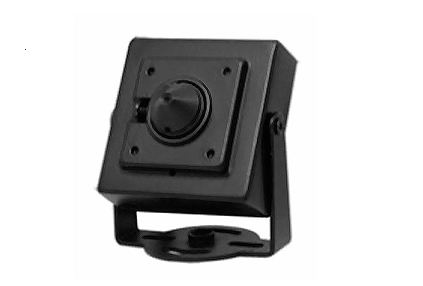

ECO-CPH37
High Resolution Conical Pinhole Lens Camera
Discontinued Product
High Resolution High Sensitivity camera designed by industry specialists to meet the stringent demands of todat’s CCTV Professional.
The newest addition in our history of elite quality cameras, Ikegami is proud to announce the ECO-CPH37 Mini Cube camera. This camera comes with higher resolution?] an impressive 700TVL-plus the added benefit of a 3.7 mm conical pinhole lens for your discreet surveillance requirements. The result is higher sensitivity in lower light levels with highest resolution available in a compact analog camera.
0.05 lx, 700TVL High Resolution Pictures
The ECO-CPH37 achieves a horizontal resolution of 700 TVL with 518,000 NTSC / 607,000 PAL pixels, enabling reproduction of exceptionally clear and detailed images in ultra-low light conditions. The ECO-CPH37 performs at levels as low as 0.05lux minimum scene illumination performance.
Auto White Balance
The ECO-CPH37 features automatic tracking white balance control (ATW) and automatic white balance control (AWC). The result is better color tracking in difficult lighting conditions (such as sodium light).
>52dB, High Picture Quality, Low Smear and Noise
The improved DSP circuit permits 52dB Signal-to-Noise ratio with Low Smear.By the factor, a clear image can be captured even under strong light.
OSD Capability
A joystick button located at the camera connecting cable provides access to the unit OSD for easy selection of the unit adjustable parameters such as;
・8 Languages
・ATR
・Lens
・Privacy
・Shutter
・Motion Detection
・White Balance
・Camera ID
・Noise Reduction
・Camera Reset
・Picture Adjust
・Day/Night
・BLC
960H Image Sensor
The ECO-CPH37 goes to a whole new level performance with our 1/3?h format 960H CCD sensor that provides wide?]screen formats covering more blind spots than the regular 4:3 aspect ratio format. If needed, it has switchable capability to set it at 4:3 regular aspect ratio format.
