IPD-DM100
H.264 IP Network MegaPixel Internal Dome Camera
Discontinued Product
Ikegami Provides the Best in Highly Sensitive Images and Reliability.
The IPD-DM100 is the latest addition to Ikegami’s renowned stable of high sensitivity IP network camera, supporting the highly efficient H.264 and M-JPEG compression formats, which allows wider light spectrum coverage with high sensitivity to provide the best optimal video quality required for Professional Security Systems.
High Resolution and Low Light Performance
The IPD-DM100 employs a newly developed 1/3-inch CMOS sensor to provide high resolution video images, coupled with High sensitivity performance of 1.1 Lux/F1.2 for Colour (0.017 Lux/F1.2 for Monochrome) providing clear picture reproduction in very low light conditions.
H.264 and M-JPEG Compatibility
The IPD-BX100 fully supports H.264/M-JPEG video compression and AAC audio compression,The highly efficient H.264 compression standard saves over 50% of the bandwidth and disk space required by MPEG-4.

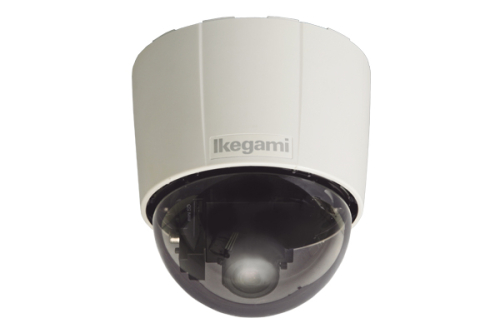

Aesthetic Appearance Internal Dome Housing
Designed to be unobtrusive and not conflict with aesthetic properties of commercial and residential areas.

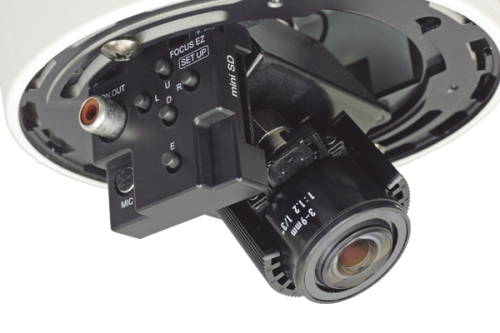

Mini SD card On-Board
A Mini SD card slot interface is provided for on-board recording.
Video Motion Detection
Ikegami's unique algorithms permit accurate operation under poor conditions, including outdoor operation.
Focus EZ Function
Enables accurate focus adjustment with the best depth of field.
| CAMERA | |
| Image Device | 1/3-inch CMOS sensor |
| Scanning System | Progressive scan |
| Video Compression | H.264, M-JPEG |
| Codec Image Size(H×V) | 1280×1024/640×480 |
| Maximum Frame Rate | 30fps |
| Minimum Illumination | 1.1Lx/F1.2 (HYPER-AGC, IRE50%, Sens.up: OFF, Colour mode) 0.017Lx/F1.2 (HYPER-AGC, IRE50%, Sens.up: x32, B/W mode) |
| Day/Night | ACK mode |
| Lens Type | Vari-focal lens(focal length:3-9mm/F1.2) |
| Frame Integration | Available(max. 32times) AUTO(S/N, STD, MOVE) Manual |
| Electronic Shutter Speed | 1/30-1/30,000sec, FL (Flickerless) |
| Back Light Compensation | Available(ON/OFF/SPOT Level adj.) |
| Auto Gain Control(AGC) | ON(AGC, Hyper-AGC)/ OFF(LOW, MID, HIGH) |
| White Balance | ATW1/ATW2/AWC/Manual |
| Privacy Masking | Available(up to 8areas) |
| Easy Focus | Available(Focus Indicator display) |
| Auto Iris Function | DC iris |
| Camera Setup | through Client PC or OSD menu |
| VIDEO ANALYTICS | |
| Motion Detection Function | Available |
| AUDIO | |
| Audio Compression | ADPCM 32Kbps |
| Audio Input | Built-in microphone |
| ANALOGUE VIDEO OUTPUT | |
| Video Output | 1ch(Mini-pinplug) Composite |
| NETWORK | |
| Ethernet Interface | 10BASE-T/100BASE-TX |
| Protocols | TCP, UDP, RTP/RTCP, RTSP, HTTP, FTP, DHCP, DNS, NTP (Multicast streaming) |
| VIDEO STORAGE | |
| Flash Memory | Mini SD Card slot(Max. 32GB SDHC standard) |
| GENERAL | |
| Power Requirement | AC24V±10%/DC12V(10.5V-15V)/ PoE(IEEE 802.3af) CLASS 0 |
| Power Consumption | Approx. 7W |
| Ambient Temperature | -10℃ - +50℃/30-90%RH |
| Dimensions | φ138×H145mm |
| Weight | 840g |
