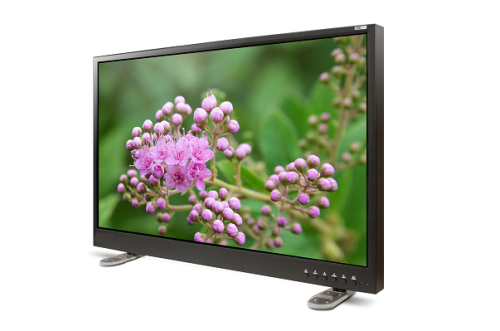

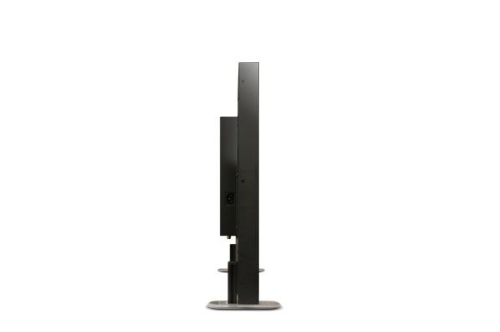

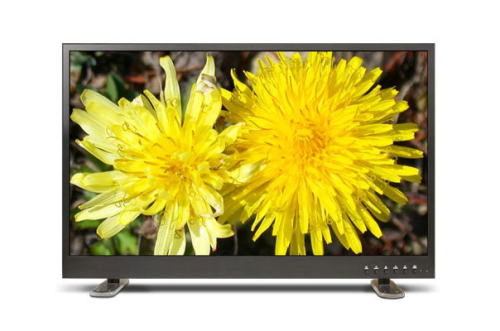

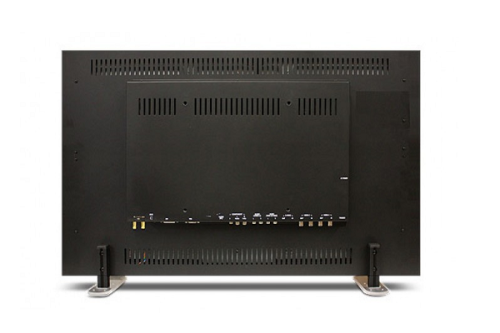

ULE-315U
31-inch SD/HD/3G-SDI Input Monitor
The ULE-315U incorporates the SD/HD/3G-SDI formats with latest panel and image processing technology to provide higher contrast and accurate scaler at a price that fits your budget.
- Full HDTV display that delivers real time broadcast grade images.
- LED backlight to extend the lifetime and save power.
- Non-glare surface coating.
- SD/HD/3G-SDI (level A/B) is supported in addition to composite, PC (VGA) and HDMI inputs.
- Wireless remote control.
- Electronic galvanized iron metal frame.
| Display | |
| Screen Size | 31.55-inch |
| Max. Resolution | H1920×V1080 @60Hz |
| Pixel Pitch | 0.364×0.364mm |
| Surface | Non-glare coating |
| Brightness | 450cd/m2 |
| Contrast Ratio | 1400:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178°(H/V) |
| Display Color | 16.7 Million |
| Response Time | < 8msec.(Gray to Gray) |
| Video System | NTSC/PAL |
| Interface | |
| SDI In / Out | 1 In/1 Out SD-SDI: 525i(29.97) NTSC/625i(25) PAL 525i(59.94) NTSC/625i(50) PAL HD-SDI: 720p(50/59.94/60) 1080i(50/59.94/60) 1080p(23.98/24/25/29.97/30/50/59.94/60) 1080PsF(25/29.97/30) 1080i(50/59.94/60) 3G-SDI: SDI video connections are switchable between standard definition, High definition level A and level B 3G-SDI |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M |
| Video In / Out (BNC Type) | 2 In/2 Out |
| HDMI In | 1 In |
| VGA In (15Pin D-Sub) | 1 In |
| Audio In (RCA Type) | 2 Left & Right |
| PC Stereo In | 1 In |
| Transmitter | |
| Remote Control | Yes |
| Audio | |
| Built-in Speakers | Yes(1W×2) |
| Features | |
| Filter Type | 3D Comb Filter is built-in Yes |
| Deinterlacing | Yes |
| Noise Reduction | Yes |
| Advanced Auto Power Recovery | Yes |
| Trigger Sensor | Yes |
| Auto Pixel Shift | Yes |
| Auto Source Sequencing | Yes |
| Multi Language | English, Spanish, French, German, Italian |
| General | |
| Outline Dimension | W732.0×H486.3×D160.0mm(W28.81"×H19.14"×D6.29") |
| Net Weight | 12.90kg(28.43lbs) |
| Material/Color | Metal/Black |
| Power | < 55W AC100~240V(50/60Hz) |
| Operating Temperature | 0~40°C/32~104° F |
| Optional Mounts | |
| VESATM Mount Size | 200×200mm |
