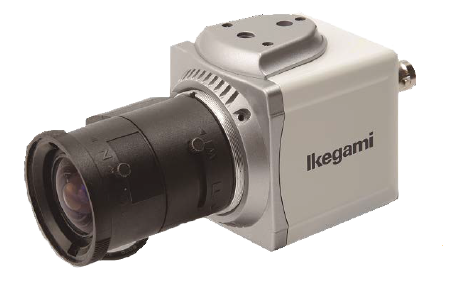

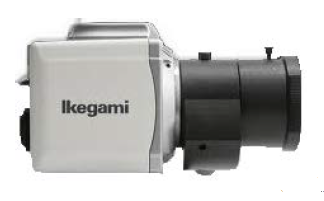

ICD-879S
1/2-inch High Resolution and High Performance True Day/Night Camera
- 1/2-inch Ultra Low Light CMOS Image Sensor
- 1080P Full HD Hybrid Output support
CVBS(Defalt), 1080P Full HD Hybrid Output CVI, TVI, AHD - Natural Color Reproduction and clear & vivid image
- Enhance Local Real‐time Surveillance Image Quality
- Adaptive Digital Noise Reducer(2D/3D)
This feature removes noise in images(spatial, temporal domain). Temporal noise is reduced by 3D filter using frame memory and spatial noise is reduced by 2D filter. Especially, the ghost effect is reduced by motion adaptive filter. - Wide Dynamic Range Compensation(120dB)
| Image Sensor | 1/2-inch 2 Mega Pixels CMOS Sensor |
| HD Resolution | Full HD H1920×V1080 |
| Frame Rate | 1080P‐Full HD (30FPS/25FPS) |
| Scanning system | 16:9 Progressive Scan |
| Video Output | Analog Output ‐ CVBS(default) HD Output ‐ CVI,TVI,AHD |
| Min.Illumination(F1.2) | Color 0.07Lux, B/W 0.0047Lux(sens up «off») |
| S/N Ratio | More than 52dB(AGC off) |
| Wide Dynamic Range | Support(120dB) |
| White Balance | Auto/Auto ext/Push/Manual |
| Electronic shutter | Auto,Manual,Flicker,1/30.000 sec max. |
| Digital Noise Reduction | 2D+3D, OFF/LOW/MIDDLE/HIGH |
| Motion Detection | 4 Areas(On/Off, Position) |
| Privacy Mask | 16 Areas(On/Off, Color, Position) |
| Day & Night | True Day/night (Auto/Day/B&W/EXT) |
| ACE | Off/LOW/MIDDLE/HIGH |
| D‐Zoom | 1.0X~16.0X |
| Lens Shading | Off/ON |
| Operating Temperature | -10°C~+50°C |
| Humidity | RH 30% to 90%(no condensation) |
| Power Consumption | AC 24V ±10%, DC 12V(+10.5V~+15V), 4.0W |
| Outer dimensions | W52×H52×D55mm |
| Weight | Approx. 350g |
