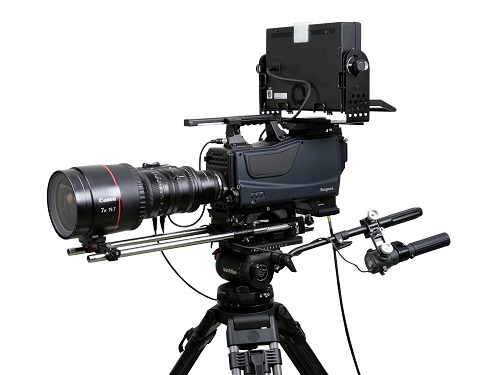

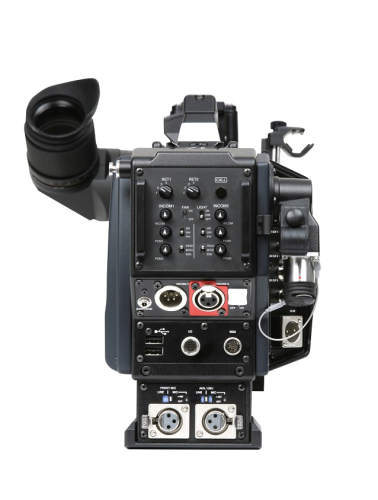

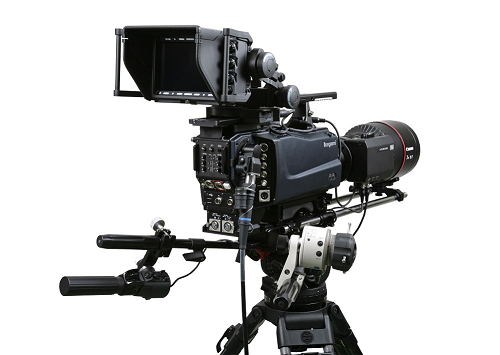

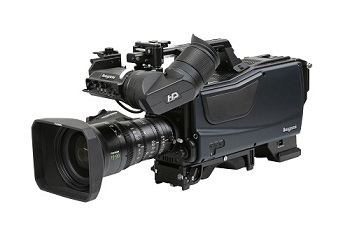

SHK-810
8K Super Hi-Vision Camera System
Discontinued Product
World's First Hand-Held 8K Ultra High Definition Television Camera System, Developed in Collaboration with Japan Broadcasting Corporation (NHK)
- 33 million-pixel Super 35 CMOS sensor
- 4,000TVL horizontal
- Dual-green SHV color arrangement
- System Expander can be used
- 8K Focus Assist function
- Built-in flange back adjustment system is enabling back focus adjustment of PL-mount lenses without shims
- The standard SMPTE fiber cable can be used
- Lens Aberration Correction function (depend on lens)
| Operating Voltage | AC100V-240V(50Hz/60Hz) Auto-detectable |
| Relative Humidity | 30%-90% Non-condensing |
| Image Sensor | Super 35mm 33 million-pixel CMOS Sensor |
| Optical System | PL Lens mount with back-focus adjusting mechanism |
| Viewfinder | 2-inch LCD VF 7.4-inch OLED VF 9-inch 4K LCD VF |

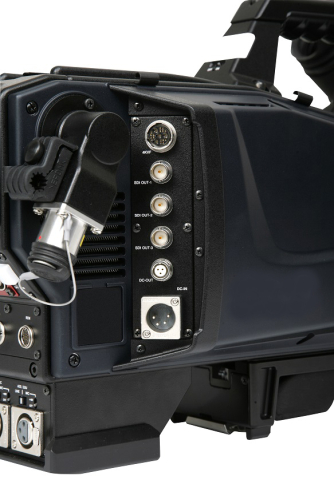

| Output Signals | SHV Dual Green SDI Interface 4K SMPTE 424M (3G-SDI) Level B HD SMPTE 292M, Selectable |
| Return Signals | 2-channel×4K 4-channel×HD, Selectable |
| External Sync. Signals | Tri-Level Sync. or VBS, Auto-detectable |
| Dimesions | Camera: Excluding protrusions 168 mm (W)×228 mm (H)×395.3 mm (D) 6.6 inch (W)×9.0 inch (H)×15.6 inch (D) CCU: 19-inch rack mountable (5RU) 482 mm (W)×222 mm (H)×478 mm (D) 19.0 inch (W)×8.7 inch (H)×18.8 inch (D) |
| Weight | Camera: 9kg(19.8 lbs) or less Excluding viewfinder CCU: 30kg(66 lbs)or less |
| Power Consumption | Camera with 4K viewfinder and CCU: 480VA or less Camera with 2" viewfinder and CCU: 420VA or less With camera cable: 50m(164 ft) |
