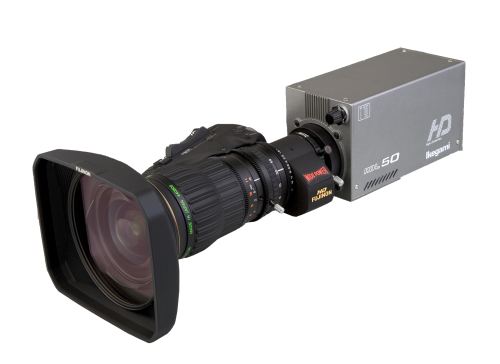

HDL-50
One-Piece Full Digital Native Multi-format HDTV Camera
Discontinued Product
2.5Mega-pixel CMOS sensor
Newly developed CMOS sensors are employed to achieve superb picture quality. CMOS sensors have wide dynamic range and, in principle, no smear. The sensors include significant circuitry within the sensor itself, resulting in a digital video interface between sensor and Ikegami camera DSP, all in a very small device with low power consumption. The CMOS sensor includes native progressive and interlace modes for multi-format HD operation.
Fully Digitized Circuits
End-to-end Digital processing has been realized through the use of 0.18 micro meter design rule 3.3 million gate ASIC / Fully digital stream through the camera to the HD-SDI output assures signal integrity, high picture quality, and stable and reliable operation.
Servo Filter
The 4-position Optical Filter Wheel is motorized with filter position control at the remote control panel (RM-50, OCP-200, etc.).
Lower noise with Gain-up
Employing a low-noise feedback type amplifier circuit in Master gain up, as well as, providing noise cancel circuits in all video related boards, eliminates noticeable noise and obtains a better signal-to-noise with high gain up.
ND Filter and Electric Color
Connrection (ECC) Filter Employs optical 4-position ND Filter and ECC Filter (3200K/5600K). By the combination of these filters, the camera can handle all kinds of lighting conditions. AWB mode is available to cover the full range of color temperature.
HDL-50 series HDTV Native Multi-format capability
All native 1080/59.94i, 1080/50i, 720/59.94p and 720/50p are available from the camera head. (Sister models, HDL-51/HDL-F51, support native 1080/23.98p format, and HDL-50/HS supports 1080/59.94p format as well.)
| Model | Type | Format |
| HDL-50 | Standard Body | 1080/59.94i, 1080/50i, 720/59.94p, 720p/50p |
| HDL-50/HS | Dual link | 1080/59.94p, 1080/59.94i, 1080/50i, 720/59.94p, 720p/50p |
| HDL-51 | Standard Body | 1080/59.94i, 1080/50i, 720/59.94p, 720p/50p, 1080/23.98p |
| HDL-F51/HS | Dual link | 1080/59.94p, 1080/59.94i, 1080/50i, 720/59.94p, 720p/50p, 1080/23.98p |
| HDL-F50 | Gimbal Body | 1080/59.94i, 1080/50i, 720/59.94p, 720p/50p |
| HDL-F50/HS | N/A | Not available |
| HDL-F51 | Gimbal Body | 1080/59.94i, 1080/50i, 720/59.94p, 720p/50p, 1080/23.98p |
| HDL-F51/HS | N/A | Not available |
HDL-50/HS Dual Link (High Speed) Version
Remote Controller
- RM-51A

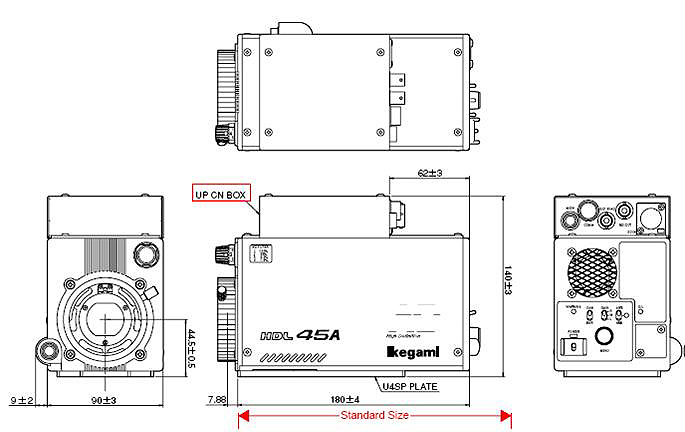

Upper Connector Box for HDL-50 standard type (option) - UCB-45
7-inch Color LCD Viewfinder(option)
- HLM-910-710
