ULE-217
21.5-inch HDTV Full HD Professional Monitor
Discontinued Product

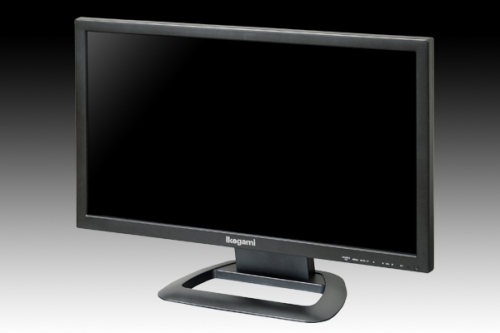

The ULE-217 is a professional multi-purpose Full HD monitor with 3G/HD-SDI and HDMI interface. ULE-217 is ideal for PC applications, or HD video monitoring. With a VESA interface it can be easily racked, wall-mounted or used as a desktop.
- Full HD 3G Multi-format LED Monitor
- 3G/HD-SDI input
- 3D Comb-filter & DeInterlace
- Built-In Speakers
- Eco-Friendly LED solution
- Built-In HDCP encryption engin
- Anti-reflection coating protection cover
Display | ||
Screen Size | 21.5-inch Diagonal 476.64 mm×268.11 mm |
|
Resolution | 1920×1080 | |
Brightness | 250cd/㎡(Typical) | |
Contrast Ratio | 1000:1 | |
Viewing Angle (H/V) | 170°/160° | |
Response Speed | 5 ms (Typical) | |
Dimensions | W515×H310×D50mm (without Stand) | |
Weight | 5.42kg (without stand) | |
External Control | GPIO : 1×D Sub 9-pin IR Remote Controller : 1× |
|
Power Consumption | less than 21.6W | |

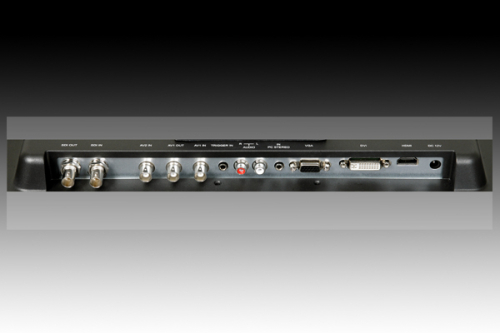

Input | HDMI 1×HDMI Type-A 3G/HD/SD-SDI (3G: Level-A) 1×BNC CVBS 2×BNC VGA 1×BNC DVI 1×DVI-I Audio L&R (for CVBS) 2×RCA pin Audio L&R (for DVI&VGA) 1×3.5-phi Mini Jack |
|
Output | 3G/HD/SD-SDI 1×BNC CVBS (Input-1) 1×BNC |
|
Input Power | 12V DC 1.8A |
