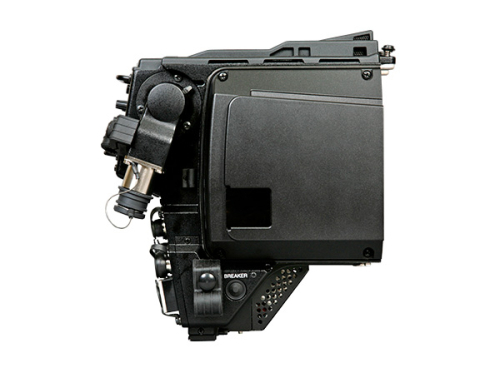

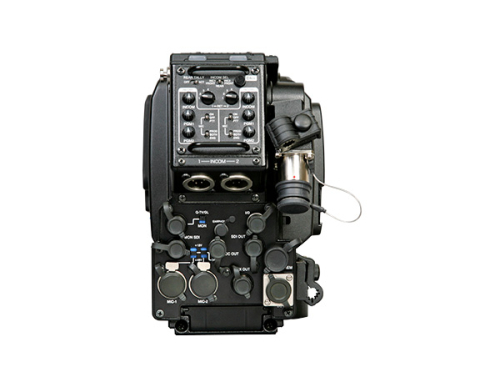

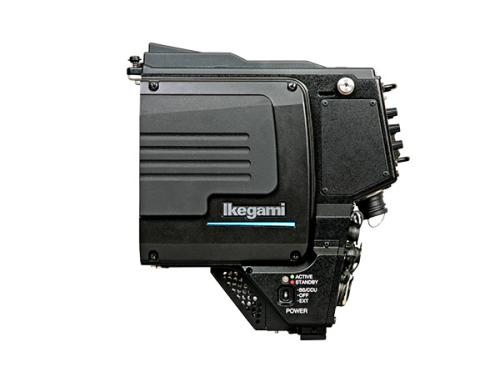

FA-55
Fiber Camera Adaptor
FA-55 is 1.5G Fiber Camera Adaptor used with BSX-100 Base Station.
This unit is mainly used with HDK-73 with BSX-100.
| Input Signals | |
|---|---|
| Return Video Signal | None |
| External SYNC Signal | -60 to +4 dB (variable) / -20 dB (fixed) |
| Intercom Signal | 2 ch (XLR type or 110 type) |
| Output Signals | |
| Main Line Video Signal | Y,Pb,Pr 4:2:2 digital serial (optical connector) Y,Pb,Pr 4:2:2 digital serial (75 ohm BNC) |
| Monitor Video Signal | RET image HD SDI 4:1:1 or VF HD SDI 4:2:2 |
| Analog Signal | G, B, R (D-Sub SE) HD Y or NTSC/PAL VBS output (MON output terminal) NTSC/PAL VBS output (AUX OUT terminal) |
| Q-TV | 0 dBs 2 ch (XLR type or 110 type) |
| Support Product | HDK-73 |
