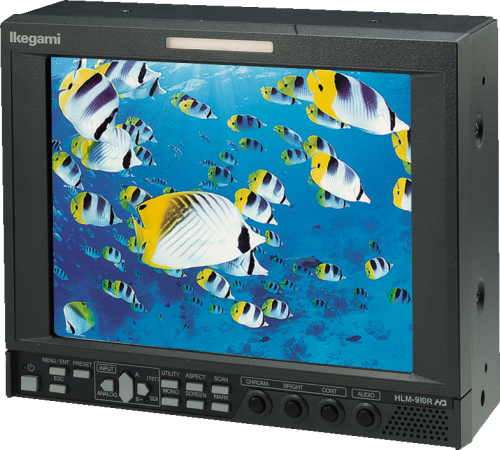

HLM-910R
8.4-inch HDTV/SDTV LCD Monitor
Discontinued Product
HLM-910R employs an 8.4-inch LCD panel and has achieved space-saving, lightweight and low power consumption. The HDTV/SDTV multi-format LCD color monitor has been designed to support any HDTV formats as well as to achieve space saving in control rooms, editing rooms, monitor walls, transmission control desks, OB Trucks and etc. The LCD monitor has succeeded functionality and operation method of Ikegami CRT monitors in the HTM/TM Series and provides superb performances in broadcast and professional use.
Overall
- Flat, compact and self-contained construction
- Employs a newly developed LCD panel
- Space-saving and light-weight in rack and wall mounting
- Lower power consumption
- 2ch each HD/SD-SDI and analog composite inputs
- Tally interface
- 19-inch rack mountable (with optional hardware)
- RoHS compliant
LCD Section
- Employs a high performance XGA (1024 x 768 pixels) LCD
- High contrast ratio: 400:1(Typical)
- Number of color reproducing: Over 16 million colors
- Good viewing angle 170 degree in both horizontal and vertical
(at Contrast Ratio 10:1 or higher)
Monitor Functions
- A variety of remote control facilities available
- Markers and Shadow functions
- Test pattern signal built-in
- Embedded audio level meters (optional)
- Audio speaker built-in
HLM-920WR/WP Options
Carrying Case
| Model# | TYPE | Functionality | Notes |
| CC-900 | RETRO | Hard Carrying Case | for HLM-910P |
| SC-900 | RETRO | Soft Carrying Case | for HLM-910P |
Optional Modules and Accessories
| Model# | TYPE | Functionality | Notes |
| CM-900 | FO | RGB/YPbPr component inputs | CM-900 cannot co-reside with embedded audio I/F (EA-xxxDML) |
| EA-910DML | FO | Embedded audio input & level indicator | |
| EA-910DML | FO | Embedded Audio Level Ind + Analog Outputs | EA-900A require EA-910DML pre-installed |
| + EA-900A-910 | |||
| EA-910DML | FO | Embedded Audio Level Ind + AES/EBU Outputs | EA-900D require EA-910DML pre-installed |
| + EA-900D | |||
| P-V2 | RETRO | Battery Bracket (V-mount) | HLM-910P, 920WP |
| SRC-301Z | RETRO | Serial Remote Controller | Controls with 99 motions with loop through connection |
| WF-910 | FO | WFM and VITC display | Software option, Supports VITC embedded to HD-SDI Signal (ARIB STD-B4 Ver 2.0) |
Handle/Stand/Tripod Mount/Rack Mount
| Model# | TYPE | Functionality | Notes |
| AT-900 | RETRO | Tripod mounting plate | Applications for VF, tripod monitor, etc. |
| BP-900 | RETRO | Blank Panel | for DR-910/SR-910 |
| DR-910 | RETRO | Dual rack mounting adapter | Allows two monitors to sit side by side |
| DR-920T | RETRO | Dual rack mounting adapter | Allows two monitors to sit side by side with tilt mechanism |
| GR-900 | RETRO | Monitor Handle | Handle for HLM-910R, 920WR (HLM-910P, 920WP : standard) |
| MH-900 | RETRO | Folding Hood | |
| SR-910 | RETRO | Single unit rack mounting adapter | Supplies with a blank panel |
| STD-900 | RETRO | Monitor Stand | Standard for HLM-910P/920WP. Optional for HLM-910R/920WR. |
| STD-920T | RETRO | Monitor Stand | With tilt function. |
| WR-900C | RETRO | Rack mounting adapter for monitor & WFM | for HLM-910R+Tektronics WFM700-series, 4U high |
| WR-900L | RETRO | Rack mounting adapter for monitor & WFM | for HLM-910R+Leader LV5750, 4U high |
| WR-900L3 | RETRO | Rack mounting adapter for monitor & WFM | for HLM-910R+Leader LV5700A/5710A, 4U high |
