HLM-904WR

9-inch HDTV/SDTV Multi-Format LCD Color Monitor

Discontinued Product

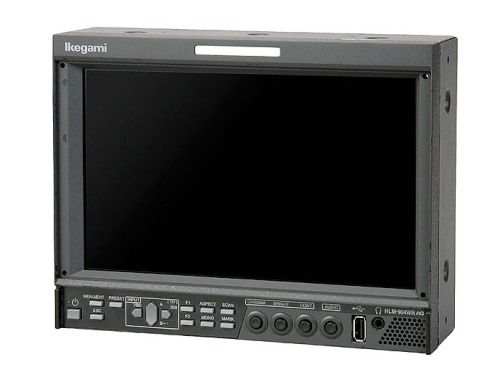

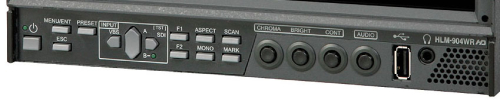

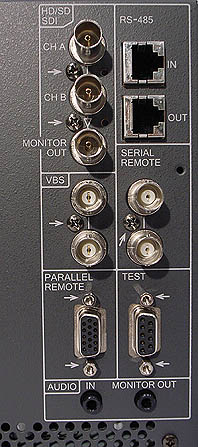

This HLM-904WR is a low-profile, lightweight and low power consumption HDTV/SDTV multi-format LCD color monitor using an 9-inch liquid crystal panel, which has been developed in consideration of effective use in various locations such as control rooms, editing rooms, monitor shelves, transmission control tables and outside broadcast vans. Employed is a liquid crystal panel with a wide viewing angle of Wide-VGA. By inheriting the function and operation of our CRT monitor HTM/TM series, this monitor achieves the conventional operation the function required of a monitor for broadcasting services. Also it uses with a dual rack mount.

High-performance liquid crystal panel

The monitor is equipped with a liquid crystal panel that is excellent in key properties such as high intensity, high contrast, wide field-view, fast response and accurate color reproduction.

Ready for multi-format

The monitor is standard compatible with the following broadcast formats. The input signal formats are automatically identified by monitor itself. (Format): 480i/59.94 (NTSC), 575i/50 (PAL-B), 1080psF/30, 1080psF/25, 1080psF/24, 1080psF/23.98, 1080p/30, 1080p/29.97, 1080p/25, 1080p/24, 1080p/23.98, 1035i/60, 1035i/59.94, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50, 720p/30, 720p/29.97, 720p/24, 720p/23.98, 720p/25

 With Battery Bracket and Stand Style

HLM-904WR/RM2 Dual Rack Type

Embedded audio

Standard equipped with an embedded audio feature, the embedded audio signals multiplexed with DH SDI signal or SD SDI(4:2:2)signal can be automatically recognized and the audio output can be heard through the built-in monaural speaker, stereo headphone or stereo line-out. (The output channel can select by MENU.) The monitor also has a standard embedded audio level meter on the screen.

Remote control functions

The monitor can be remote-controlled with the use of two remote control functions. Depending on the place of installation and type of operation, the parallel or serial mode can be used. In addition to the conventional parallel remote control (pin assignment by user is possible), the monitor also comes standard with a serial remote input interface that enables remote control with just one BNC coaxial cable. Up to 99 monitors can be remote-controlled individually or concurrently using an optional serial remote controller SRC-301A/Z simply with Ikegami's various monitors being loop-through connected.

Various Built-in markers

4:3 (16:9mode), 13:9, 14:9, 15:9 and 16:9 (4:3mode), and 2.35:1 (16:9mode) line markers can be displayed. The monitor also supported safety marker with every 1% step between 80% through 90% area. The monitor also employed five-part split and ten-split crosshatch markers useful for location alignment as standard function. User marker display function Up to 10 different user markers, such as line and box markers, are presettable pixel by pixel to your desired positions and sizes. The line and box drawing settings can be easily made with not just that the data can be copied to another monitor or stored in your PC. *Patent pending

Shadow function

The shadow function is to shade the area other than 4:3 (16:9mode), 13:9, 14:9, 15:9, 16:9 (4:3mode) marker area on images. The shadow contrast can be set at 0%, 20%, 40%, 60% on the MENU. The use of this function allows you to instantly visualize the image area when converting images with an aspect ratio of 16:9 to those with an aspect ratio of 4:3 or vice versa. The shadow function can be turned on/off by remote control and prompt switching is therefore realized.

Various built-in test signals

The monitor is standard equipped with color bars signal, grayscale signal with pluge pattern, and window signal. Various adjustments can therefore be made on the monitor alone. Time code display signal

It is possible to display the time code (VITC) multiplexed into the SDI signal on the screen. The display comes in two sizes, Large and small, and its brightness in three levels. Waveform monitor/Vector scope display function Waveform monitor of brightness signal can be displayed. The display comes in two sizes, NORMAL and SMALL, and its brightness in three levels. The waveform can also be displayed in any of three selectable positions and in one of two colors (GREEN and WHITE). The vector scope can also be readily displayed.

2-picture split display function

A previously captured still image and a currently incoming moving image are displayed split onscreen. Just one monitor serves to compare the pictures from two cameras at once on its screen.

Dot-by-dot display function

All picture elements of an input signal are displayed 1:1 according to the pixels of the LCD panel without scaling the incoming signal (enlarging or reducing the input signal according to the LCD pixels). This function is useful in checking transmitted input signals for pixel defects, camera CCD's scratches, etc.

External memory function

Various data (MENU settings, PRESET data, etc.) can be saved on a USB memory and copied to a PC, on which the data is ready to manage. Such data may also be copied to another monitor. *Keep your mind that when copying the PRESET data to another monitor, they may be different from monitor to monitor.

Rack mount excellent in space factor

When a rack mount is used, most 10" size CRT monitors require a height of 5U. In the case of this monitor, a height of 4U (5U minus 1U) allows housing two monitors. The 16:9 display is equivalent to the effective screen size of a 9" monitor. It can therefore be said that this monitor is a dual rack mount monitor with excellent space factors, allowing the maximum screen display size of this class.

USB mouse control

By connecting a commercially available USB mouse to the USB terminal of this monitor, it is possible to perform various adjustments including the "MENU" setting", "PRESET data setting", gInput signal switching", and the "Front switch setting" through the use of a muse. Remote operation of the monitor at a distant position is possible by using a commercially available wireless mouse. Use of the scroll wheel function of the mouse has significantly improved the user-friendliness of the monitor for making adjustment of various data such as color temperature.

Supports AC/DC/Battery Operation

Employed built-in AC power supply and DC input. And also It is possible to use this monitor at studios, OB Vans, and fields with using optional Battery adaptor with handle.

5.1 surround down mix function

Among the embedded audio 8 channels, 5.1 channel surround audio channel (Lm, Rm, C, Ls and Rs) has been selected fro the stereophonic audio function at the downmix mixing ratio specified by ARIB and ISO/IEC The downmix audio signal can be easily output through the speakers built in the monitor, headphone or through the analog output.

HLM-904WR Options

Carrying Case

Model# TYPE Functionality Notes
CC-904 RETRO Hard Carrying Case
CCH-HLM09 RETRO Hard Carrying Case Exterior dims: 19×10×15 inches
Weight: Approx. 11 lbs
SO-016 RETRO Soft Carrying Case Exterior dims: 9.4×7.9×6.7 inches
Weight: Approx. 2.2 lbs

Optional Modules and Accessories

Model# TYPE Functionality Notes
ASP-100 RETRO Auto Setup Probe Unit.
BB-904A RETRO Battery Bracket(Anton Bauer Type) includes GR-904 handle
BB-904V RETRO Battery Bracket(V-Mount Type) includes GR-904 handle
SRC-301Z RETRO Serial Remote Controller Controls with 99 motions with loop through connection

Handle/Stand/Tripod Mount/Rack Mount

Model# TYPE Functionality Notes
AT-900 RETRO Tripod mounting plate Applications for VF, tripod monitor, etc.
BP-920 RETRO Blank Panel for DR-904/920
DR-904 RETRO Dual rack mounting adapter Allows two monitors to sit side by side
GR-904 RETRO Monitor Handle same as BB-904A-01
MH-904 RETRO Folding Hood
PP-904 RETRO Protection Cover for HLM-904WR Anti-Refelection Coating
STD-900 RETRO Monitor Stand for HLM-910P/920WP/904WR. Tilt Anlge: Up 14 degree, Standard with HLM-920WP/910P
STD-904 RETRO Monitor Stand for HLM-904WR Simple stand
STD-920T RETRO Monitor Tilt Stand Tilt Angle: Up 10 degree / Down 10 degree
