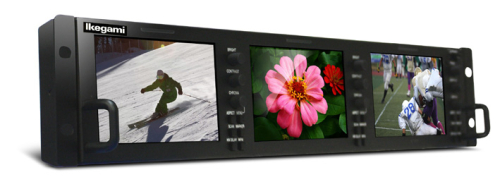

• Triple 5-inch HDTV LED backlit monitor with 3G input
• Resolution: 800×480 (15:9)
• Pixel Pitch: 0.13 (H)×0.13 (V) mm
• Color: 16.7M True Color
• Viewing Angles: 170°×170° No Color Deviation
• Brightness: 300cd/m²
• Contrast: 600:1
• Display Area: 108.0×64.8mm
• 4:3/16:9 screen aspect ratio switch
• Underscan (3%)/Normal switch
• H/V Delay switch
• Various Markers : Area / Safety Markers
• Embedded Audio Level Indicator (8ch) on top screen
• Tally Light×3
• Title Generator
• Blue only/Mono selection
• Time Code Display
• Waveform Display
• Vector Scope Display
• Adjustment and selection : Brightness / Contrast / Chroma / Aperture / Color Temp / Backlight adjustment
• Tilt Adjustment up to 90 degrees.
• EIA 19-inch Rack Mount Type
• Rack Height 2RU
• Carrying case (option)
