HLM-1510R/1510V
15-inch HDTV/SDTV Multi-Format LCD Color Monitor
Discontinued Product
HLM-1510R/1510V employs a 15-inch LCD panel and has achieved space-saving, lightweight and low power consumption. The HDTV/SDTV multi-format LCD color monitor has been designed to support any HDTV formats as well as to achieve space saving in control rooms, editing rooms, monitor walls, transmission control desks, OB Trucks and etc. The LCD monitor has succeeded functionality and operation method of Ikegami CRT monitors in the HTM/TM Series and provides superb performances in broadcast and professional use.
Overall
- Flat, compact and self-contained construction
- Employs a newly developed high contrast LCD panel
- Space-saving and light-weight in rack and wall mounting or shelf mounting
- Lower power consumption

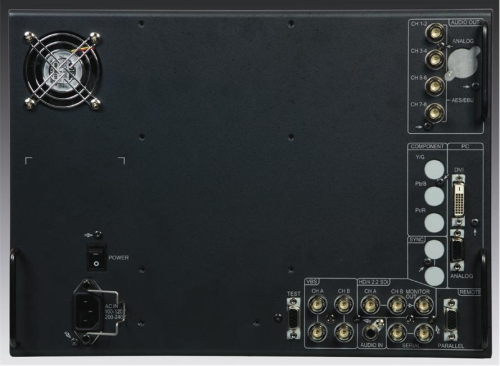

- 2ch each HD/SD-SDI and analog composite inputs
- DVI-D and PC input (optional)
- Tally interface
- Equipped with the VESA mount (75mm, 100mm interface)

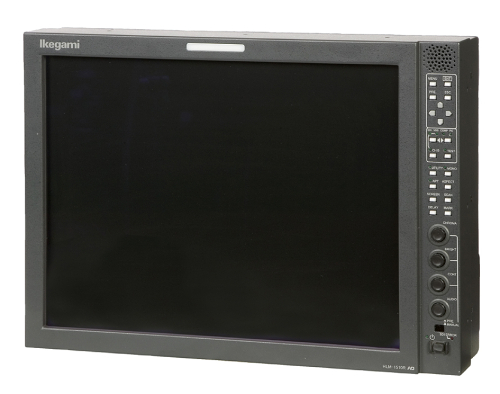

- HLM-1510R is 19-inch rack mountable with optional hardware (6RU to replace a 14" CRT monitor)

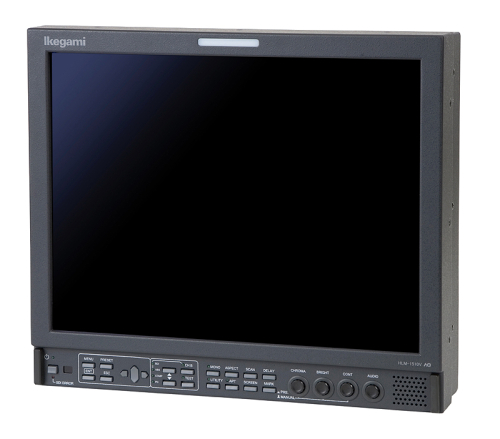

- HLM-1510V is in narrow width design and suitable for shelf mounting with multiple units
- RoHS compliant
LCD Section
- Employs a high performance XGA (1024 x 768 pixels) LCD
- LCD protection by on-panel film
- High contrast ratio: 700:1(Typical)
- Number of color reproducing: Over 16 million colors
- Good viewing angle 170 degree in both horizontal and vertical
- (at Contrast Ratio 10:1 or higher) [ Monitor Functions ]
- Markers and Shadow functions
- Test pattern signal built-in (color bars, grayscales, window, etc.)
- WFM display, VITC display setting
- Split screen display mode for live input and freeze frame
- Dot-by-dot display mode without scaling
- Embedded audio level meters (optional)
- Audio speaker built-in
- Input formats (HD-SDI/SD-SDI auto detect and analog composite NTSC/PAL):
1035/60i, 59.94i; 1080/60i, 59.94i; 1080/50i; 1080/30psf; 1080/25psf; 1080/24psf, 23.98psf; 1080/30p, 29.97p; 1080/25p; 1080/24p, 23.98p; 720/60p, 59.94p; 720/50p; 720/30p, 29.97p; 720/25p; 720/24p & 23.98p(*1); 480/59.94i (NTSC); 575/50i (PAL); 480/59.94p(*2);
(*1) SDI input only (*2) RGB / YPbPr input only
HLM-1510R Options
Optional Modules and Accessories
| Model# | TYPE | Functionality | Notes |
| CM-171 | FO | RGB/YPbPr component inputs | CM-171 cannot co-reside with PC-171 |
| EA-171DML | FO | Embedded Audio Level Ind. | Also, allows speaker audio output |
| EA-171DML + EA-900A-1510 | FO | Embedded Audio Level Ind + Analog Outputs | XLR-5 pin analog audio connectors, EA-900A require EA-171DML pre-installed |
| EA-171DML + WA-900D | FO | Embedded Audio Level Ind + AES/EBU Outputs | BNC digital audio connectors, EA-900D require EA-171DML pre-installed |
| PC-171 | FO | PC & DVI-D inputs | PC-171 cannot Co-reside with CM-171 |
| RCT-30A | RETRO | Infrared Remote Controller | |
| SRC-301Z | RETRO | Serial Remote Controller | Controls with 99 motions with loop through connection |
Handle/Stand/Tripod Mount/Rack Mount
| Model# | TYPE | Functionality | Notes |
| RS-1510 | RETRO | Rack mounting hardware | 6 RU. No tilt mechanism |
| RS-1510T | RETRO | 19-inch Rack Mount Adaptor with Tilt Mechanism | 4-Step Angle, 7RU height |
| STD-1517 | RETRO | Monitor Stand | Just for desk stand. No pan & tilt mechanism |
| STD-1517T | RETRO | Stand with Tilt Mechanism | Tilt: Up 15 degree / Down 15 degree |
| STD-1722 | RETRO | VESA Arm Stand | For VESA Mount |
| VM-1510R | RETRO | VESA Mount Adaptor | For VESA Mount |
