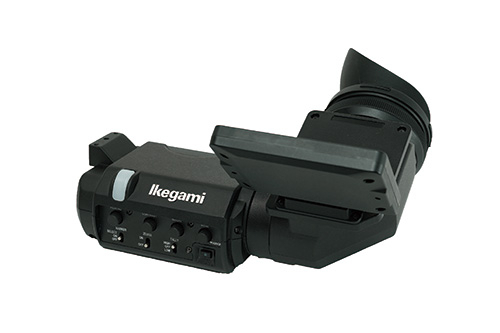

VFE-P07D
Portable Viewfinder
0.7-inch OLED viewfinder with high-performance 3.5-inch flip-type LCD panel, exclusively for UNICAM XE Series cameras. Ideal for low-angle shooting and other positions away from the eyepiece.
High Performance OLED Panel
The OLED panel’s high brightness and excellent contrast ratio ensure clear visibility even under strong ambient lighting. Its fast response speed enables more precise focusing, especially in High Frame Rate shooting.
Digital and Analog interface
The VFE-P711AD adopts the end-to-end digital video processing of the UNICAM XE series. Its clear image quality makes accurate focusing easy.Also included is an analog interface compatible with conventional UNICAM HD cameras via an optional VF cable.
Interactive Camera - VF Control (UniMenu)
UniMenu delivers smarter control through bidirectional camera and viewfinder integration. Operators can access and adjust the same menu from either the camera head or the viewfinder, simplifying setup and on-site operation.
Waveform Monitor/Vectorscope
The VFE-P711AD viewfinder incorporates a variety of test-related tools including a waveform monitor, vectorscope and audio level meter.
External Inputs
Supporting 3G/HD-SDI input, the VFE-P711AD can be also used as a field monitor.
| Eyepiece | Panel inch | 0.7-inch OLED |
| Screen size | 16(H) x 9(V) mm | |
| Aspect retio | 16:9 | |
| Resolution | 1920(H) x 1080(V) | |
| Brightness | 200 cd/m² | |
| Color reproduction | 16.7M colors | |
| Flip display | Panel inch | 3.5-inch TFT LCD |
| Screen size | 80(H) x 45(V) mm | |
| Aspect retio | 16:9 | |
| Resolution | 1920(H) x 1080(V) | |
| Brightness | 450 cd/㎡ | |
| Angle of view | 170°(H), 170°(V) | |
| Color reproduction | 16.7M colors | |
| Input | Camera input | 1ｘDigital I/F (UNICAM XE exclusive) |
| 3G/HD-SDI input | BNC x1 | |
| Specifications | Dimensions (excluding protrusions) | W211 x H148 x D197 mm |
| Operating temperature / humidity | Operating: -20°C to +45°C, 30% to 85% RH (non-condensing) | |
| Storage temperature / humidity | Storage: -20°C to +60°C, 0% to 90% RH (non-condensing) |
