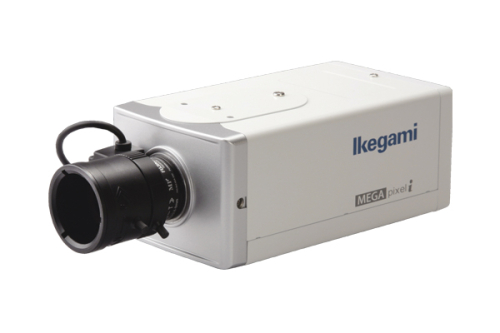

IPD-BX110
H.264 IP Network MegaPixel Camera
Discontinued Product
Ikegami Provides the Best in Highly Sensitive Images and Reliability.
The IPD-BX110 is the latest addition to Ikegami’s renowned stable of high sensitivity IP network camera, supporting the highly efficient H.264 and M-JPEG compression formats, which allows wider light spectrum coverage to the near infra-red spectrum to provide the optimal video quality required for Professional security systems.
High Resolution and Low Light Performance
The IPD-BX110 employs a newly developed 1/3-inch CMOS sensor to provide high resolution video images, coupled with High Sensitivity Performance of 0.5Lux/F1.2 for Colour (0.0015Lux/F1.2 for monochrome) providing clear picture reproduction in very low light conditions.
H.264 and M-JPEG Compatibility
The IPD-BX110 fully supports H.264/M-JPEG video compression and AAC audio compression,The highly efficient H.264 compression standard saves over 50% of the bandwidth and disk space required by MPEG-4.
Equipped with Remote Back Focus Adjustment
The IPD-BX110 has a remote back focus adjustment feature with a well-designed electronic control mechanism.
SD card On-Board
An SD card slot interface is provided for on-board recording.
Video Motion Detection
Ikegami's unique algorithms permit accurate operation under poor conditions, including outdoor operation.
Focus EZ Function
Enables accurate focus adjustment with the best depth of field.
| CAMERA | |
| Image Device | 1/3-inch CMOS sensor |
| Scanning System | Progressive scan |
| Video Compression | H.264, M-JPEG |
| Codec Image Size(HxV) | 1280×1024/640×480 |
| Maximum Frame Rate | 30fps |
| Minimum Illumination | 0.5lx/F1.2(HYPER-AGC, IRE50%, Sens.up: OFF, Colour mode) 0.0015lx/F1.2(HYPER-AGC, IRE50%, Sens.up: x32, B/W mode) |
| Day/Night | Removable IR-cut filter |
| Frame Integration | Available(max. 32times) AUTO(S/N, STD, MOVE)、 Manual |
| Electronic Shutter Speed | 1/30-1/30,000sec, FL (Flickerless) |
| Back Light Compensation | Available(ON/OFF/SPOT Level adj.) |
| Auto Gain Control(AGC) | ON(AGC, Hyper-AGC)/ OFF(LOW, MID, HIGH) |
| White Balance | ATW1/ATW2/AWC/Manual |
| Privacy Masking | Available(up to 8areas) |
| Easy Focus | Available(Focus Indicator display) |
| Back Focus Adjustment | Available(Remote control) |
| Auto Iris Function | DC iris |
| Camera Setup | through Client PC or OSD menu |
| Lens Mount | CS-mount |
| VIDEO ANALYTICS | |
| Motion Detection Function | Available |
| AUDIO | |
| Audio Compression | ADPCM 32Kbps |
| Audio Input | Built-in microphone |
| ANALOGUE VIDEO OUTPUT | |
| Video Output | 1ch( BNC)Composite |
| NETWORK | |
| Ethernet Interface | 10BASE-T/100BASE-TX |
| Protocols | TCP, UDP, RTP/RTCP, RTSP, HTTP, FTP, DHCP, DNS, NTP (Multicast streaming) |
| VIDEO STORAGE | |
| Flash Memory | SD Card slot(Max. 32GB SDHC standard) |
| GENERAL | |
| Flash Memory | SD Card slot(Max. 32GB SDHC standard) |
| Power Requirement | AC24V±10%/DC12V(10.5V-15V)/ PoE(IEEE 802.3af) CLASS 0 |
| Power Consumption | Approx. 7W |
| Ambient Temperature | -10℃-+50℃ 30℃90%RH |
| Dimensions | W78xH58xD140mm |
| Weight | 600g |
